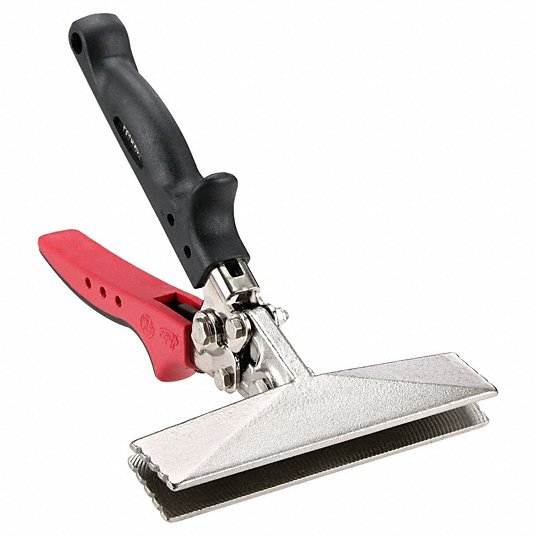

Malco RedLine 6" Hand Seamer – Forged Jaws, 24 Gauge Capacity, #S6R
The Malco S6R RedLine 6" Hand Seamer bends, folds, flattens and straightens sheet metal for roofing flashing, gutters, siding trim and HVAC duct work. The wider 6" jaws minimize buckling and take fewer strokes on long bends.
Drop-forged, high-impact jaws have vee-notched depth marks in 1/4" increments up to 1-1/4" (31.8 mm) and handle up to 24 gauge galvanized and mild steel. Nickel plating and hardened steel handles stand up to daily use, and RedLine handles maximize the 7:1 compound leverage with a non-slip grip insert, spring action and a thumb-operated latch.
Why Contractors Choose It
🔨 Drop-forged high-impact jaws — strong and long-lasting
📐 Wide 6" jaws — less buckling and fewer strokes
📏 Vee-notched depth marks — 1/4" increments up to 1-1/4"
🧱 24 gauge capacity — galvanized and mild steel
✨ Nickel plated — corrosion-resistant finish
🖐️ RedLine handles — 7:1 compound leverage, non-slip grip insert, spring action and thumb latch
How To Use
1️⃣ Mark the bend line on the sheet metal.
2️⃣ Open the latch and set the metal in the jaws to the depth mark you need.
3️⃣ Squeeze the handles and rotate the tool to bend, fold or flatten the metal.
4️⃣ Work along long edges in overlapping bites for an even bend.
Notes
Model: S6R
Type: Hand seamer, forged jaws
Jaw Width: 6" (152 mm)
Depth Marks: 1/4" increments to 1-1/4" (31.8 mm)
Overall Length: 8" (203 mm)
Weight: 30 oz (851 g)
Capacity – Aluminum: .035" (0.89 mm)
Capacity – Copper: .023" (0.58 mm)
Capacity – Stainless Steel: 26 gauge (.018" / 0.46 mm)
Capacity – Galvanized Steel: 24 gauge (.028" / 0.71 mm)
Capacity – Mild Steel: 24 gauge (.024" / 0.61 mm)
Finish: Nickel plated
Handles: RedLine, 7:1 compound leverage
Replacement Spring: 5018
Warranty: Limited lifetime
