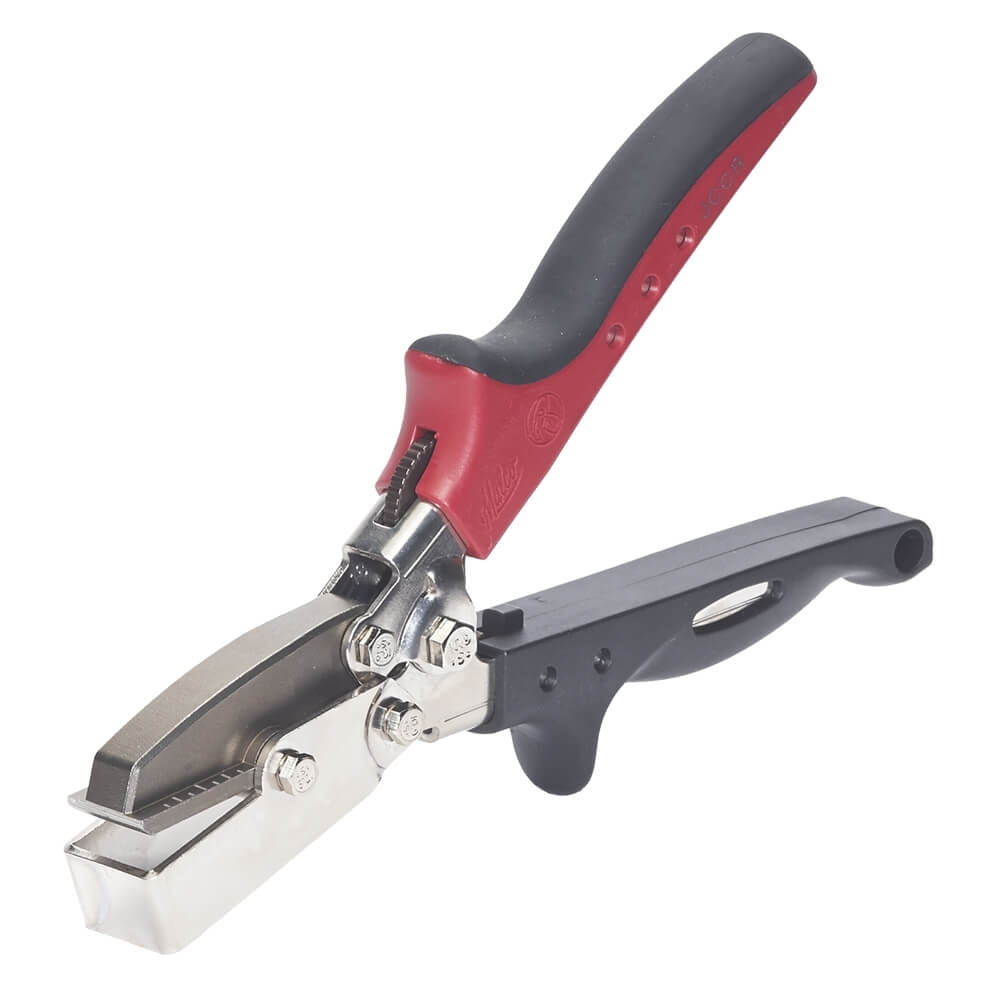

Malco RedLine J-Channel Cutter – 1/2" Channel, Notch & Drain Tab, #JCC50R
The Malco JCC50R RedLine J-Channel Cutter is sized for 1/2" (12.7 mm) vinyl J-channel. Use light pressure with one click of the handles to make a drain tab, or a full stroke to cut a .655" (16 mm) notch knockout. Make 45° miter cuts on either side of the jaws.
Jaw graduations gauge 3/8" to 1-1/4" (9.5 – 31.2 mm) for repeatable cuts. Hardened all-steel construction with nickel chrome and black oxide finishes stands up to jobsite use. RedLine handles maximize the 7:1 compound leverage with a non-slip grip insert, spring action and a thumb-operated latch.
Why Contractors Choose It
✂️ Sized for 1/2" J-channel — .655" notch knockout
💧 Drain tabs — light pressure, one handle click
📐 45° miter cuts — on either side of the jaws
📏 Jaw graduations — gauge 3/8" to 1-1/4"
🛠️ Hardened all-steel construction — nickel chrome and black oxide finishes
🖐️ RedLine handles — 7:1 compound leverage, non-slip grip insert, spring action and thumb latch
How To Use
1️⃣ Mark the notch, drain tab or miter on the J-channel.
2️⃣ Open the latch and set the channel in the jaws against the graduations.
3️⃣ Squeeze lightly for a drain tab, or use a full stroke for a notch knockout.
4️⃣ For miters, set the channel on either side of the jaws and cut at 45°.
Notes
Model: JCC50R
Type: J-channel cutter
Channel Size: 1/2" (12.7 mm)
Notch Knockout Width: .655" (16 mm)
Cuts: Drain tabs, notches and 45° miters
Jaw Graduations: 3/8" – 1-1/4" (9.5 – 31.2 mm)
Overall Length: 8-7/8" (225 mm)
Weight: 16 oz (454 g)
Construction: Hardened all steel, nickel chrome and black oxide finish
Handles: RedLine, 7:1 compound leverage
Replacement Spring: 5018
Warranty: Limited lifetime
