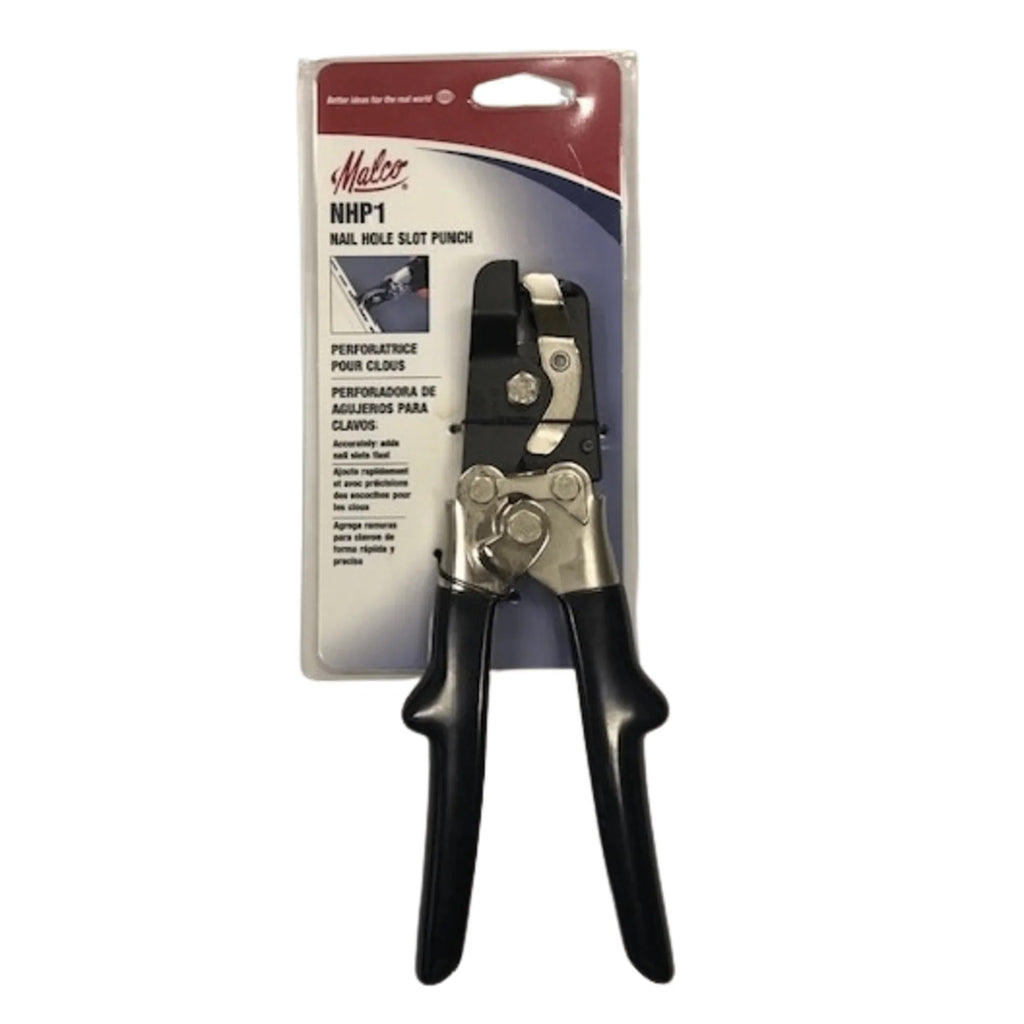

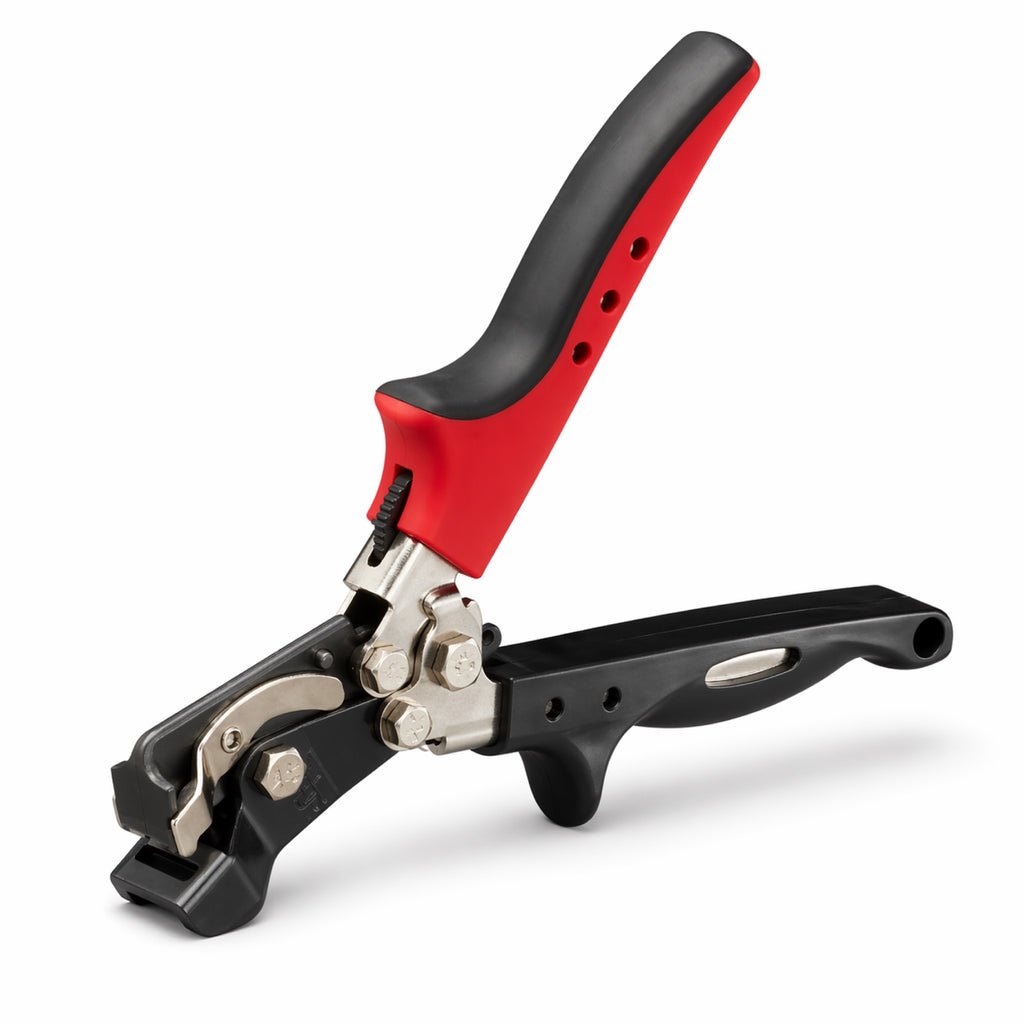

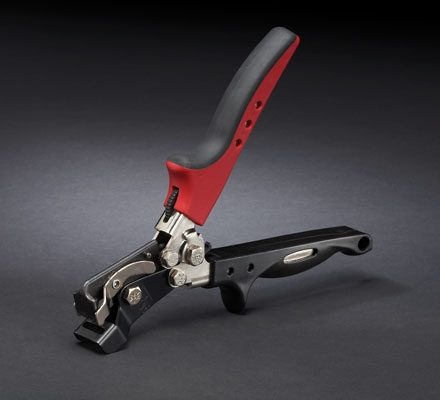

Malco RedLine Nail Hole Slot Punch for Vinyl Siding, #NHP1R
The Malco NHP1R Nail Hole Slot Punch adds or elongates nail holes in vinyl siding and .019" (0.48 mm) aluminum siding when stud spacing doesn't line up with the factory nail hem. It punches a generous 5/32" x 3/4" (4.0 x 19.1 mm) horizontal slot, so the panel can still move as it expands and contracts.
It's built with hardened steel stampings and rugged investment cast alloy steel jaws, with rust-resistant nickel plate and black oxide finishes for a long service life. RedLine handles maximize the 7:1 compound leverage, with grip contours, a non-slip grip insert, spring action and a thumb-operated latch for comfortable one-hand use.
Why Contractors Choose It
🔧 Generous 5/32" x 3/4" horizontal slot — add or elongate nail holes fast
🏠 Fixes irregular stud spacing — nail where the stud is, not where the hole is
🧱 Works on vinyl siding and .019" aluminum siding
💪 Compound leverage — 7:1 mechanical advantage
🛠️ Investment cast alloy steel jaws — nickel plate and black oxide finish
🖐️ RedLine handles — non-slip grip insert, spring action and one-hand thumb latch

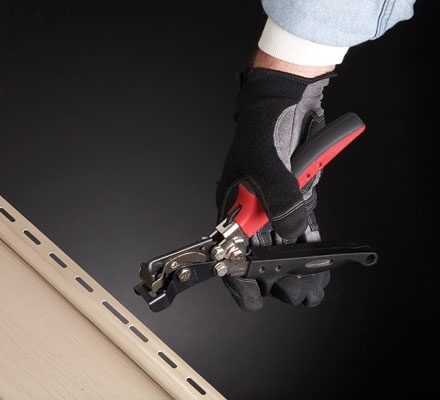

How To Use
1️⃣ Find the stud and mark where the new nail slot needs to go on the nail hem.
2️⃣ Open the latch and set the nail hem into the jaws at your mark.
3️⃣ Squeeze the handles to punch the horizontal slot.
4️⃣ Nail through the center of the slot, leaving room for the panel to move.
Notes
Model: NHP1R
Type: Nail hole slot punch
Slot Size: 5/32" x 3/4" (4.0 x 19.1 mm), horizontal
Material: Vinyl siding and .019" (0.48 mm) aluminum siding
Throat Depth: 5/8" (15.9 mm)
Overall Length: 8-1/2" (216 mm)
Weight: 16 oz (454 g)
Jaws: Investment cast alloy steel, hardened steel stampings
Finish: Nickel plate and black oxide
Handles: RedLine, 7:1 compound leverage
Replacement Spring: 5018
Warranty: Limited lifetime
