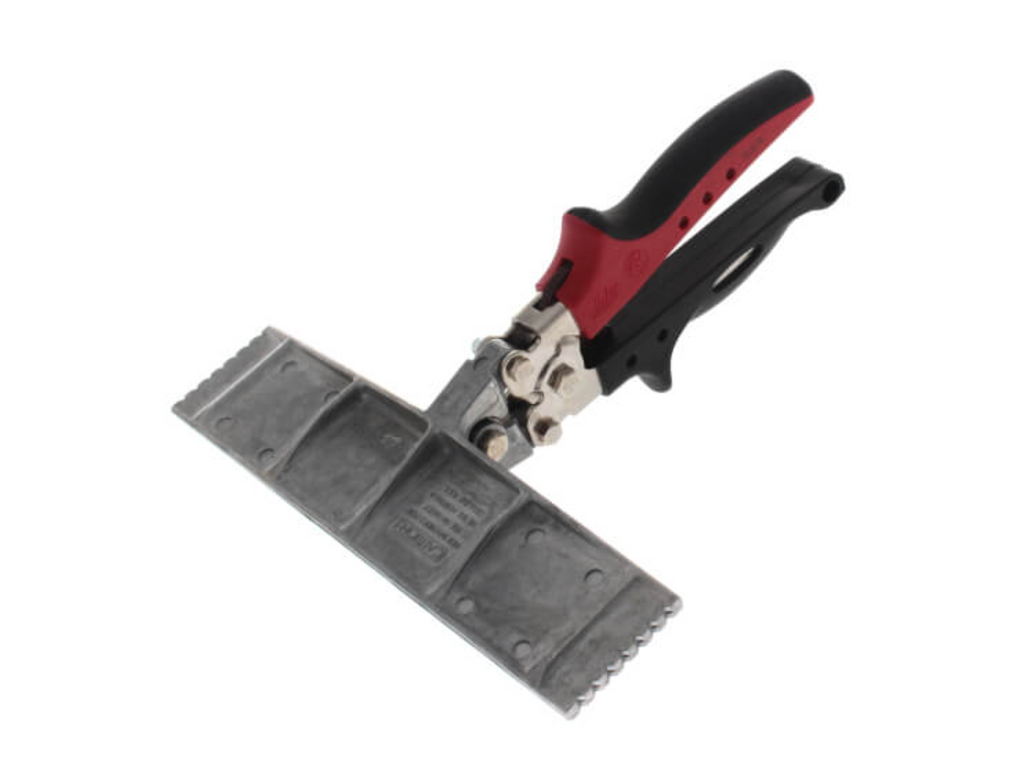

Malco RedLine 9" Hand Seamer – Cast Zinc Jaws for Painted Aluminum, #S9R
The Malco S9R RedLine 9" Hand Seamer bends and flattens light-gauge aluminum roof flashing, coil stock and fascia. Its die-cast zinc jaws are gentle on painted and coated surfaces, and the bowed jaws hold evenly across light material for clean, straight bends.
Graduations in 1/4" increments go up to 2" (50.8 mm) deep. The seamer is rated for aluminum up to .029" (0.74 mm) and can do limited flattening of light-gauge painted steel, including auto body panel edges. Nickel plating protects the tool, and RedLine handles maximize the 7:1 compound leverage with a non-slip grip insert, spring action and a thumb-operated latch.
Why Contractors Choose It
🎨 Die-cast zinc jaws — gentle on painted and coated surfaces
📐 Wide 9" jaws — long, even bends in coil stock and fascia
📏 1/4" graduations — up to 2" deep
🪶 Bowed jaws — hold evenly on light material
✨ Nickel plated — corrosion-resistant finish
🖐️ RedLine handles — 7:1 compound leverage, non-slip grip insert, spring action and thumb latch
How To Use
1️⃣ Mark the bend line on the aluminum.
2️⃣ Open the latch and set the metal in the jaws to the depth you need.
3️⃣ Squeeze the handles and rotate the tool to bend or flatten the metal.
4️⃣ Use it on light aluminum only — not for steel, striking or prying.
Notes
Model: S9R
Type: Hand seamer, cast zinc jaws
Jaw Width: 9" (229 mm)
Graduations: 1/4" increments to 2" (50.8 mm)
Capacity – Aluminum: .029" (0.74 mm)
Weight: 28 oz (794 g)
Finish: Nickel plated
Handles: RedLine, 7:1 compound leverage
Not for steel, striking or prying
UPC: 686046534466
Warranty: Limited lifetime
