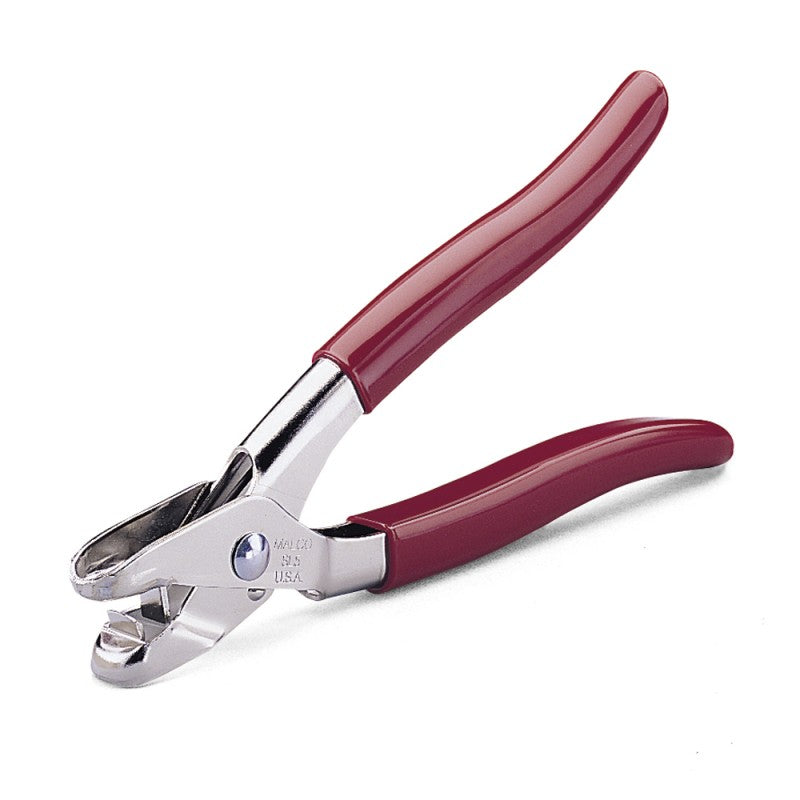

Malco Snap Lock Punch for Vinyl & Aluminum Siding β Red Vinyl Grips, #SL5
The Malco SL5 Snap Lock Punch locks plastic siding and skirting into finishing trim. It punches raised tabs into the cut edge of the siding panel used as the finishing course at the top of a wall or under a window, and those tabs snap into the utility trim to hold the panel tight.
The punch raises a high projection to make up for the natural relaxation of vinyl, so the lock holds. It also works on aluminum siding, but it is not recommended for steel. This economical, rugged punch has red vinyl grips, a 3/8" throat and a 9" overall length.
Why Contractors Choose It
π Raises locking tabs β snaps the finish course into utility trim
π High projection β makes up for the natural relaxation of vinyl
π For vinyl siding and skirting β also works on aluminum siding
πͺ For the top of a wall or under a window
π οΈ Economical and rugged β 9" long, 12 oz
ποΈ Red vinyl grips β comfortable hold on repeated punches

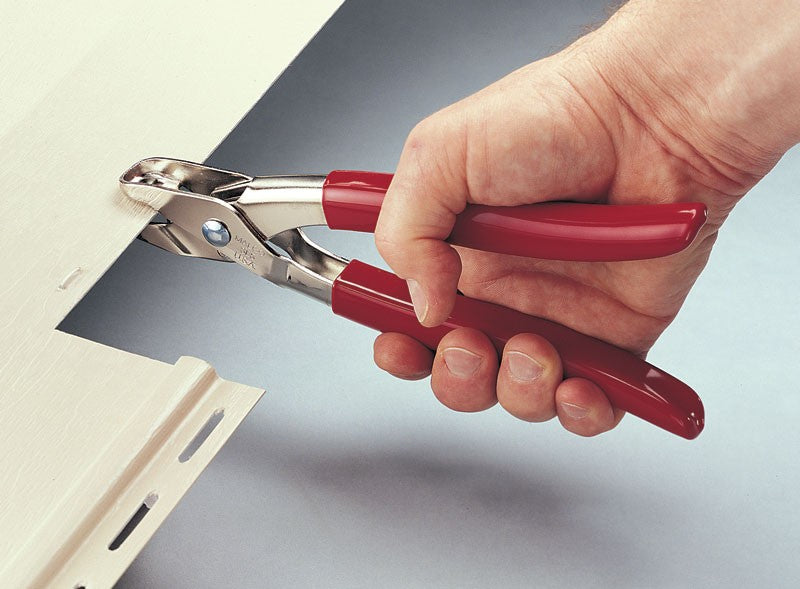

How To Use
1οΈβ£ Cut the finish-course panel to height and set it in place to mark where the tabs go.
2οΈβ£ Set the cut edge of the panel into the 3/8" throat.
3οΈβ£ Squeeze the handles to raise a tab, then space more tabs along the cut edge.
4οΈβ£ Push the panel up so the tabs snap into the utility trim.
Notes
Model: SL5
Type: Snap lock punch
Material: Vinyl siding and skirting, aluminum siding (not recommended for steel)
Throat Depth: 3/8" (9.5 mm)
Overall Length: 9" (229 mm)
Weight: 12 oz (340 g)
Handles: Red vinyl grips
Use SL1R or SL2R when PERMATABS are required
Not recommended below 32Β°F (0Β°C)
Warranty: Limited lifetime
β οΈ California Proposition 65 Warning
This product may expose you to chemicals including metals known to the State of California to cause cancer or reproductive harm. For more information visit www.P65Warnings.ca.gov.
