Guardian Temper Reusable Roof Anchor – 5,000 lb, Flat to 12/12 Pitch, #00455

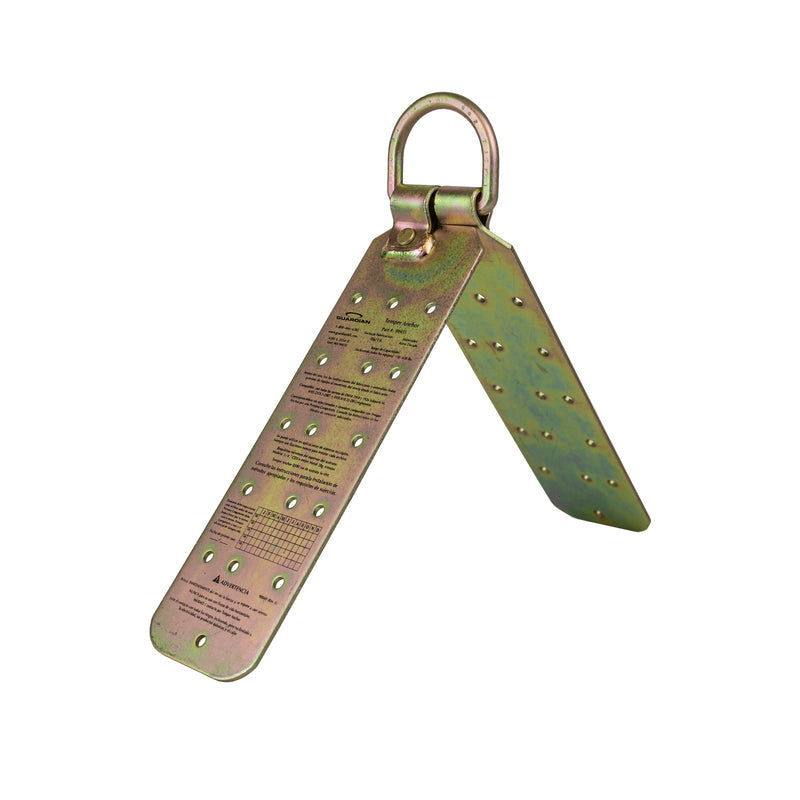

The Guardian 00455 Temper Anchor is a reusable Type A anchorage connector for temporary fall protection on wood, metal and concrete roofs. Its adjustable hinge lets it lie flush on any roof pitch from flat to 12/12, and the D-ring gives a solid tie-off point for one worker.
It is made of thick zinc-plated steel with a 5,000 lb minimum breaking strength, and it supports one personal fall arrest system for a worker from 130 to 420 lb. Offset fastener holes help keep the truss from splitting, fasteners are included, and the screen-printed safety label won't peel off. It meets OSHA 1926 Subpart M and 1910 and ANSI Z359.18 and A10.32.
Why Contractors Choose It
💪 5,000 lb minimum breaking strength — one PFAS, 130–420 lb worker
📐 Adjustable hinge — fits flat to 12/12 roof pitch
♻️ Reusable — reinstall with new fasteners on the next job
🪵 Offset fastener holes — help keep the truss from splitting
🛡️ Zinc-plated steel — durable and corrosion resistant
✅ Meets OSHA 1926 Subpart M and 1910, ANSI Z359.18 and A10.32
How To Use
1️⃣ Locate a truss or rafter and set the anchor flush on 3/4" or thicker CDX sheathing — never on a bare truss.
2️⃣ For a truss install, drive (12) #12 x 2" screws or 16d nails, 6 per side, in the center column of holes.
3️⃣ Connect your lanyard or SRL to the D-ring and check that the anchor sits flush and solid.
4️⃣ Remove when the job is done; use new fasteners for each install and never reuse a damaged anchor.
Notes
Model: 00455
Type: Reusable Type A anchorage connector
Strength: 5,000 lb minimum breaking strength
Capacity: 1 user, 130–420 lb
Roof Pitch: Flat to 12/12
Substrates: Wood (3/4" CDX min.), metal (20 ga min.), concrete
Fasteners: Included; use new fasteners for each install
Max Free Fall: 6' (fall arrest)
Material: Zinc-plated steel
Weight: About 3.5 lb
Standards: OSHA 1926 Subpart M and 1910, ANSI Z359.18-17 and A10.32-12
Read and follow the manufacturer instructions before use
